RP-1036D 1-CH Digital Single Channel PA system pure power amplifIer 360W 500W 650W 1000W 1500W 2000W
The RP‑1036D is a rugged, professional-grade amplifier offering 360 W RMS, flexible output modes (4–16 Ω or 70/100 V), and essential protection features. Built for demanding PA and AV systems, its reliable performance and rackmount design make it ideal for integrators and AV professionals.

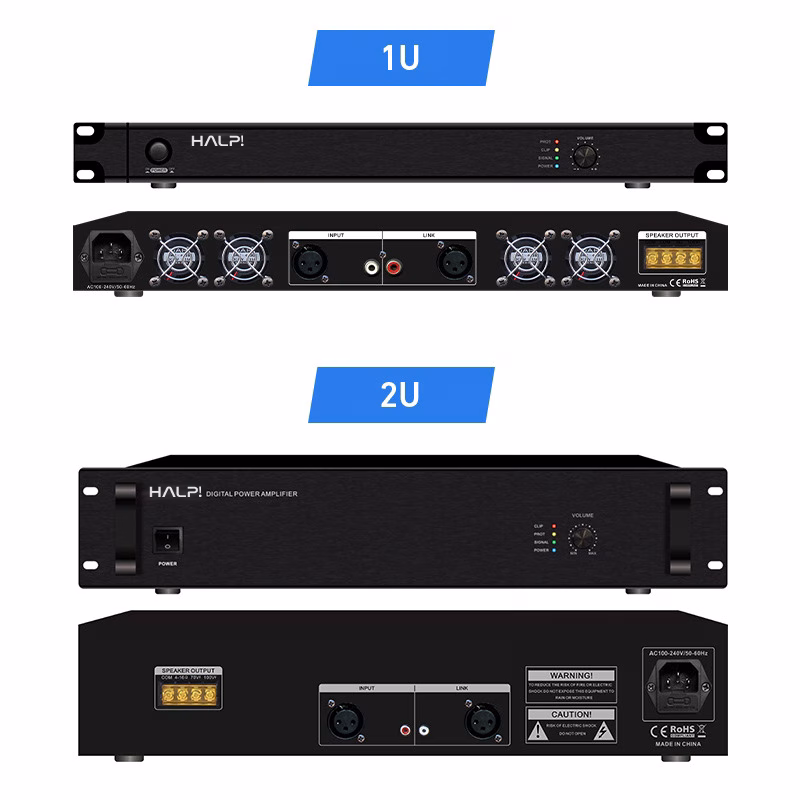

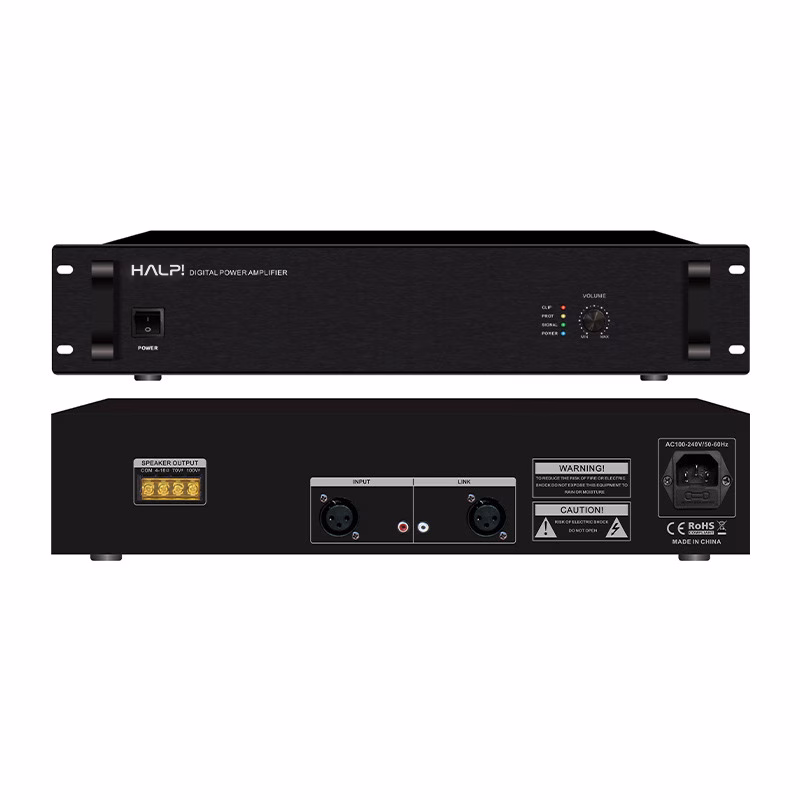

The RP‑1036D is a robust, rack-mountable pure power amplifier designed for professional public address and background audio systems. Available in a sleek 2U chassis, it handles 360 W RMS at 4–16 Ω or 70/100 V lines, ensuring reliable output under demanding conditions.
| Model | RP-1036D | RP-1050D | RP-1065D | RP-1010D | RP-1015D | RP-1020D |
|---|---|---|---|---|---|---|
| Rated Output Power | 360W | 500W | 650W | 1000W | 1500W | 2000W |
| Output Mode | 4–16 ohms (Ω) constant resistance output, 70V, 100V constant voltage output | |||||
| Input Sensitivity | 10KΩ 0.775V (0dBV), unbalanced | |||||
| Auxiliary Output | 0.775V (0dBV) | |||||
| Frequency Response | 100Hz – 15kHz (±3dB) | |||||
| Nonlinear Distortion (THD) | <0.5% at 1kHz, 1/3 of rated output power | |||||
| Signal-to-Noise Ratio (S/N) | >105dB | |||||
| Damping Coefficient | 600 | |||||
| Voltage Rise Rate | 40V/μS | |||||
| Output Adjustment Rate | <3dB, from no signal (static) to full load working state | |||||
| Function Control | One volume adjustment and one power switch | |||||
| Cooling Mode | Automatic speed-regulating fan | |||||
| Indicator Light | Power supply: ‘POWER’, ceiling suppression: ‘CLIP’, signal: ‘SIGNAL’, protection: ‘PROT’, high temperature: ‘TEMP’ | |||||
| Protection | RP-1036D to RP-1065D: AC FUSE × 6A / 8A / 10A, load short circuit, high temperatureRP-1010D to RP-1020D: AC FUSE × 20A, load short circuit, high temperature | |||||
| Power Cord | (3 × 1.5 mm²) × 1.5M (standard) | |||||
| Power Supply | AC220V ±10%, 50–60Hz | |||||
| Power Consumption | 485W | 675W | 878W | 1350W | 2000W | 2500W |
| Machine Size | 89(H) × 483(W) × 366(D) mm |
Key Advantages
-
Dual-mode operation supports direct low-impedance drive or constant-voltage distribution systems
-
Solid audio fidelity with low THD and wide bandwidth for clear performance
-
Comprehensive protection circuit ensures safe and reliable operation under load
-
High damping factor suitable for delivering concise, controlled bass response
-
Rack-mount design and built-in cooling fan optimize usability in professional installations
Ideal Applications
-
Multi-zone PA systems in offices, retail spaces, or educational campuses
-
Powering ceiling, pendant, or horn speakers in distributed audio setups
-
Conference halls, seminar venues, and BGM environments requiring reliable amplification
-
Low-impedance sound reinforcement and constant-voltage installations
