NX Series
Golden Ratio, Spectacular View
Key Features (NX Series)
Derived from official manuals and datasheets across LiKYLIN and similar fine-pitch series:
-

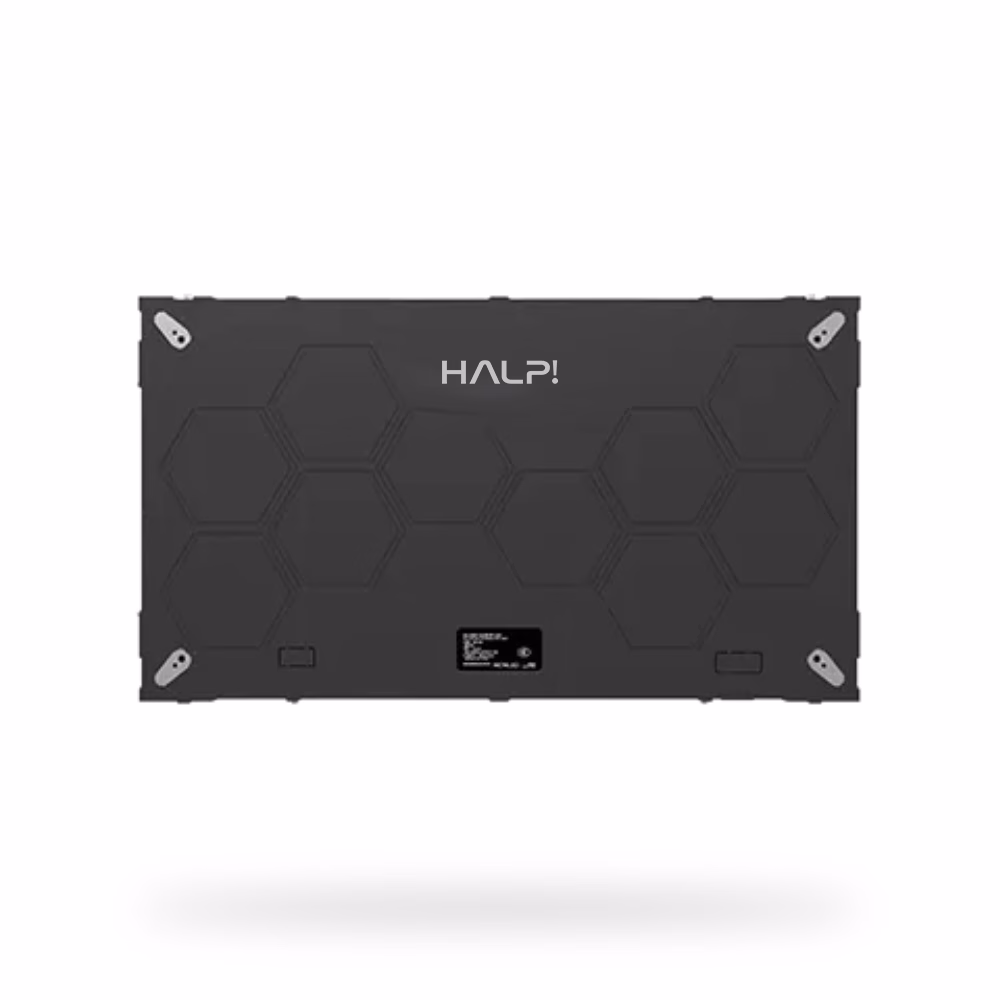

High-precision die-cast aluminum cabinet with honeycomb-like “X”-design structure for improved aesthetics and stability.
-
Seamless modular design enabling seamless flat-panel tiling with full front or rear-service accessibility. Maintenance includes snap-in high-pin connectors and tool-less module replacement.
-
Brightness options:
-
Standard: ~800 nits for general indoor use
-
High-Brightness: ~1500 nits for well-lit environments (note: excludes the smallest pixel pitch models)
-
-
Display Specifications:
-
Pixel pitches: from approx. 1.25 mm to 3.75 mm (models like NX1.2, 1.5, 1.8, 2.5, 3.7 available)
-
Cabinet size: 960 × 540 × 43.5 mm
-
Refresh rate: up to 3840 Hz
-
Color depth: up to 16-bit grayscale; contrast ratios from ~3500:1 to ~5200:1 depending on pitch and brightness
-
-
Engineering Enhancements:
-
No fans for silent operation
-
Triple-axis flatness adjustment for seamless panel alignment
-
Dual backup for power and signal to ensure reliability
-
Advanced calibration (e.g., pixel-level A5C+ calibration) for uniform brightness and color
-
Energy-saving features: dynamic blanking and partial blackout modes for certain pitches
-
TÜV low-blue-light certification for eye protection
-
-
Installation Flexibility:
-
Supports wall-mounting, stacking, or hanging installations
-
Trim pieces and rotary hinge back cover for easy cleaning and wiring
-
Front or rear maintenance enabled via screw or quick-release mechanisms
-
| Parameter Name | NX0.9 | NX1.2 | NX1.5 |
|---|---|---|---|
| Pixel Pitch (mm) | 0.9375 | 1.25 | 1.5625 |
| Brightness (nits) | ≤ 300 | ≥ 600 | ≥ 600 |
| Max Power Consumption (W/㎡) | — | ≤ 300 | ≤ 300 |
| Average Power Consumption (W/㎡) | — | ≤ 120 | ≤ 120 |
| Cabinet Resolution (W × H) | 640 × 360 | 480 × 270 | 384 × 216 |
| Cabinet Size (mm) (W × H × D) | 600 × 337.5 × 34 | 600 × 337.5 × 34 | 600 × 337.5 × 34 |
| Cabinet Weight (kg/unit) | 4.2 ± 0.05 | 4.2 ± 0.05 | 4.2 ± 0.05 |
| Horizontal Viewing Angle (°) | ≥ 165 | ≥ 165 | ≥ 165 |
| Vertical Viewing Angle (°) | ≥ 160 | ≥ 160 | ≥ 160 |
| Contrast Ratio | 100000:1 | 100000:1 | 100000:1 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Input Voltage | AC 100~240V, 50/60Hz | AC 100~240V, 50/60Hz | AC 100~240V, 50/60Hz |
| Operation Temperature (℃) | -10 ~ 40 | -10 ~ 40 | -10 ~ 40 |
| Operation Humidity (RH) | 10%~80% No Condensation | 10%~80% No Condensation | 10%~80% No Condensation |
| LED Type | Flip-chip COB | Flip-chip COB | Flip-chip COB |
| Driving Mode | Common Cathode Drive (Optional Common Anode) | Common Cathode Drive (Optional Common Anode) | Common Cathode Drive (Optional Common Anode) |
The NX Series cabinet combines three core advantages: full flip chip-on-board (COB) technology, integrated die-casting molding, and an all-inone driver board, delivering an exceptional visual experience.Designed with a 16:9 golden aspect ratio, it seamlessly meets various display needs, from home entertainment to professional presentations, showcasing stunning visual effects.Featuring an ultralightweight yet robust structure with excellent heat dissipation, the NX Series ensures stable, long-lasting performance.The NX Series display is your ideal choice for achieving superior visual quality.
