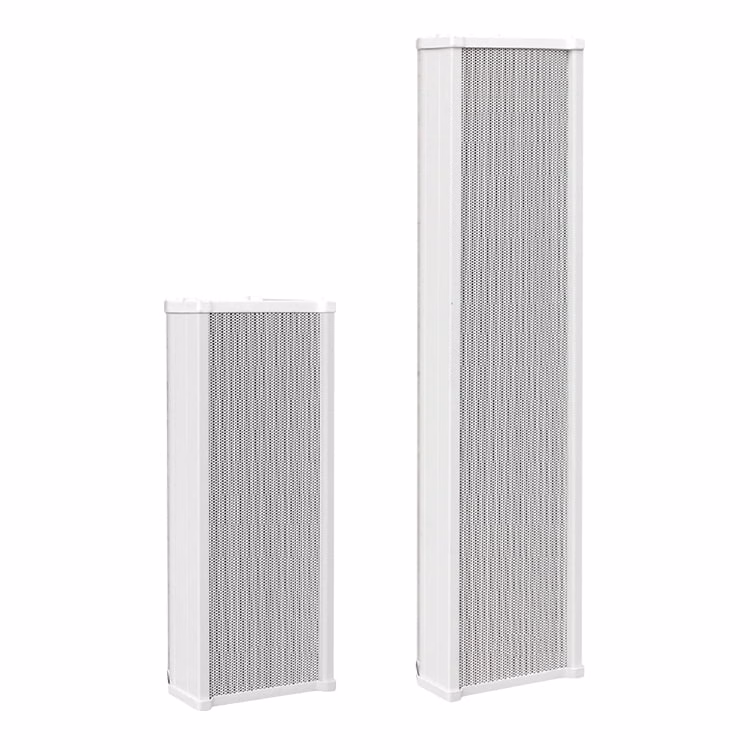

IP-PS330/IP-PS360 30W/60W Network Sound Column

The Arvox IP‑PS330/PS360 offers a polished, durable, all-in-one solution for outdoor IP paging and background audio—complete with integrated amplifier, network decoding, DSP, and alarm linkage. Both models are ideal where outdoor quality and centralized control matter most.

Category: IP PA system

Overview
Specification
Description

Product Highlights

Built with a rugged white-painted aluminum-alloy body and aluminum mesh grille—designed to resist rust and maintain a refined, modern appearance
Full-frequency horn drivers (2×4″ on the 30 W model; 4×4″ on the 60 W) deliver crisp, high-sensitivity audio ideal for outdoor environments
IPX6 rated for waterproof performance, suitable for wall-mounting outdoors
Embedded DSP and industrial-grade CPU start up in under 1 second and enable real-time audio processing and decoding

Strengths

All-in-one IP column speaker: built-in network decoder, DSP, amplifier, and alarm control.
Outdoor-rated with hardware durability—aluminum shell and IPX6 protection ensure weatherproof performance.
Flexible installation with just one cable for power and audio, thanks to its embedded PoE option and external power support.
Highly integrable: supports extensive IP network features, emergency linkages, and multicast streaming.

Item NO.	IP-PS330	IP-PS360
Protection class	2×4″	4×4″
Power supply	30W	60W
Network interface	Standard RJ45 input
Support agreements	TCP/IP, UDP, IGMP (multicast)
Audio format	MP3/MP2
Sample rate	8K-48KHz
Transmission rate	100Mbps
Audio mode	16-bit stereo CD sound quality
Output frequency	80Hz to 16KHz
Harmonic distortion	≤1%
Signal-to-noise ratio	>70dB
Waterproof rating	IPX6
Input power supply	AC100-240V, 50Hz/60Hz
Installation form	Wall-mounted outdoor sound column
Decorative materials	Aluminum alloy/Iron mesh
Appearance size	373 x 152 x 100mm	613 x 152 x 100mm
Weight	2.54Kg	3.92kg

* White painted all-aluminum alloy shell and aluminum mesh, never rusty, compact appearance, high-grade elegance;
* Built-in high-efficiency full-frequency horn unit, high sensitivity, clear and bright sound;
* Outdoor wall mounting, durable, with good waterproof performance;
* The equipment is designed with embedded computer technology and DSP audio processing technology.
* The use of high-speed industrial-grade chips, start-up time is less than 1s;
* Built-in 1 network hardware audio decoding module, support TCP/IP, UDP, IGMP (multicast) protocol;
* To realize the network transmission of 16-bit stereo CD sound quality audio signal;
* Built-in Class D 30W/60W digital amplifier circuit, fine sound quality, strong power;
* 1 set of short-circuit signal input, through the software settings can trigger the native alarm;
* 1 set of short-circuit signal trigger outputs to drive other linkage devices;
* The software can be used to upgrade and update the firmware remotely;
* Support for 1000 levels of custom audio priority silent sound control;
* Support for PSTN telephone broadcasting, support for SMS voice broadcasting;
* Support mobile WIFI on demand, support wireless remote control on demand;
* Support the server unified authorization operation management function, unified configuration management users and passwords;
* Support DHCP, compatible with routers, switches, bridge gateways, Modem, Internet, 2G, 3G, 4G, multicast, unicast and other arbitrary network structures;
* Supports the smart voice prompt function when the terminal is newly configured for registration (e.g. the device is connected);
* Support for 15KVESD protection, built-in network isolation lightning treatment circuit;
* 1 PC to download IP address serial port, used to modify the network decoding module IP address;
* Digital networked products, easy to expand, not limited by geographical location, no need to increase room management equipment;
* The design concept of the network-free line construction is adopted, and the installation is simple;
* The device power supply is designed with a switching power supply, and the AC100 to 240V voltage can work properly
