IP-PS210 IP Network Wall Speaker

IP-PS210 IP Network Wall Speaker

The Arvox IP‑PS210 is a powerful IP wall speaker offering 2×20 W Class-D amplification, dual audio inputs, and rich DSP features—all controlled over IP with robust streaming and priority capabilities. It’s a solid solution for smart indoor PA installations without needing separate amplifiers.

Category:

Design & Build

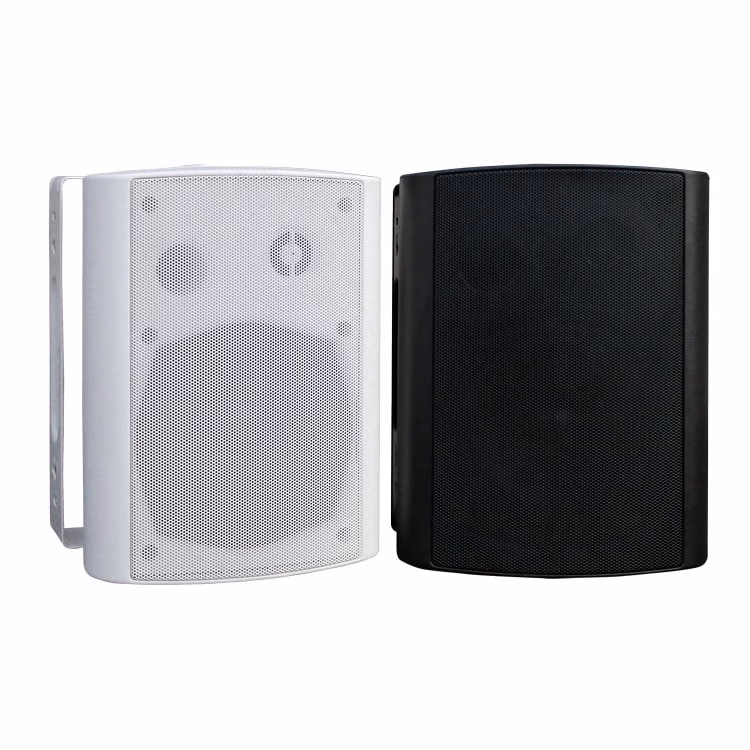

  • Indoor wall-mount speaker with ABS plastic housing and iron mesh grille, available in black or white

  • Features built-in industrial-grade CPU and DSP for fast boot-up (<1 s) and rich audio processing

Features & Controls

  • Local volume control, IP-reset button for restoring network settings

  • Built-in audio mixing, 3-tier priority control, and support for up to 1,000 custom priority levels, PSTN/SMS broadcasting, and Wi‑Fi/mobile remote control

  • Supports server-based configuration management, DHCP/static IP, and is compatible with various network setups—from routers to 4G systems

  • ESD surge protection (15 kV) with network isolation ensures reliability



Advantages

  • All‑in‑one network wall speaker: digital audio decoding, amplification, and standalone network control.

  • Rich audio processing: onboard DSP, mixing, and priority management ideal for announcements.

  • Flexible control & integration: supports PSTN/SMS broadcasts and remote network configuration.

  • Simple installation: AC power and Ethernet wiring only—no external amps needed.

  • Reliable protection: includes ESD/surge safeguards and IP reset capability.

Item NO. IP-PS210
Network interface Standard RJ45
Support agreements RTP, UDP, TCP/IP, FTP
Audio format MP3/MP2
Sample rate 8K to 48KHz
Transmission rate 100Mbps
Audio mode 16-bit stereo CD sound quality
Output frequency 80Hz to 16KHz
Harmonic distortion ≤1%
Signal-to-noise ratio ≥70dB
Speaker unit 5.25″
Rated power 2×20W (8Ω) standard plug-in terminal
Line input sensitivity 350mV standard plug-in terminals
MIC input sensitivity 5 to 10mV
The ambient temperature 5°C to 40°C
Ambient humidity 20% to 80% relative humidity
Power consumption ≤70W
Input power supply AC100 to 240V 50Hz
Size 245×162×182mm
Weight 5.3Kg

* Balanced first-class indoor wall speaker, ABS plastic housing (black and white optional), iron mesh;
* The equipment is designed with embedded computer technology and DSP audio processing technology.
* The use of high-speed industrial-grade chips, start-up time is less than 1s;
* Built-in 1 network hardware audio decoding module, support TCP/IP, UDP, IGMP (multicast) protocol;
* The network transmits audio signals with 16-bit stereo CD sound quality.
* Built-in Class D 2×20W amplifier circuit, fine sound quality, strong power;
* High-strength mica carbonized polypropylene diaphragm, providing clear language performance;
* 1 route and 1 microphone input interface with independent volume adjustment;
* The network audio signal can be adjusted locally;
* The device IP address has a reset button, which can restore the initial settings in the event of loss of IP address;
* Built-in audio processing circuit, support multi-signal amplification, mixing, support for 3-stage audio signal priority management;
* Support for 1000 levels of custom audio priority silent sound control;
* Support for PSTN telephone broadcasting, support for SMS voice broadcasting;
* Support mobile WIFI on demand, support wireless remote control on demand;
* Support the server unified authorization operation management function, unified configuration management users and passwords;
* Support DHCP, compatible with routers, switches, bridge gateways, Modem, Internet, 2G, 3G, 4G, multicast, unicast and other arbitrary network structures;
* Supports the smart voice prompt function when the terminal is newly configured for registration (e.g. the device is connected);
* Support for 15KVESD protection, built-in network isolation lightning treatment circuit;
* 1 PC to download IP address serial port, used to modify the network decoding module IP address;
* Digital networked products, easy to expand, not limited by geographical location, no need to increase room management equipment;
* The design concept of the network-free line construction is adopted, and the installation is simple;
* The device power supply is designed with a switching power supply, and the AC100 to 240V voltage can work properly
