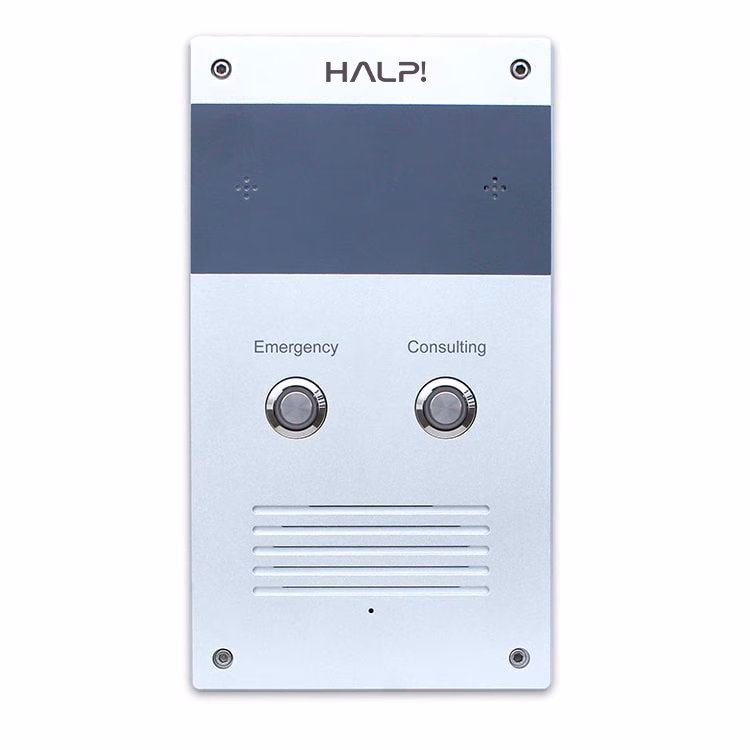

IP-8710/IP-8720 Network Intercom Terminal
The Arvox IP‑8710/IP‑8720 is a resilient, fully-featured IP intercom terminal tailored for outdoor and industrial applications. With robust protection, integrated PA, dedicated alarm keys, and system interoperability via I/O ports, it’s ideal for emergency or help-point installations in demanding environments.
Robust Build & Protection
-
All-aluminum alloy housing with matte finish, rated IP65 for dust and water resistance, featuring explosion-proof capacity
-
Dual lightning and surge protection on both power and network lines, compliant with GB/T 17626.5 Class 4
Audio & Intercom Capabilities
-
Built-in 5W horn speaker and high-sensitivity mic enable two-way full-duplex communication with other network devices
-
Two red LED-ring metal keys allow “one-click” alarm and help call functions
-
30W amplifier output (8 Ω) supports connecting up to eight 30 W external speakers for PA broadcasts
-
Two-way I/O linkage ports and a 24V active picker input make integration with external systems and monitoring easy
-
Mixed broadcast source output to feed an external amplifier
| Item NO. | IP-8710 | IP-8720 |
| Protection class | IP65 | |
| Power supply | 24V/2A | |
| Network interface | standard RJ45 | |
| Power output | 30W/8Ω | |
| Standby power | <1W | |
| Maximum operating power | <50W | |
| MIC sensitivity | 10mV/600Ω | |
| Frequency response | 20Hz to 20KHz | |
| The signal-to-noise ratio | ≥80dB | |
| Sample rate | 16K to 48KHz | |
| Audio bit rate | 8Kbps to 320Kbps adaptive | |
| Audio format | MP3 | |
| Total harmonic distortion | ≤0.1% | |
| Transmission rate | 10/100Mbps | |
| Network Protocols | ARP, UDP, TCP/IP, ICMP, IGMP (broadcast) | |
| Broadcast delay | ≤50ms | |
| The operating environment temperature | -20°C to 60°C | |
| Humidity in the working environment | 10% to 90% | |
| Dimensions | 192x106x58.5 (mm) | |
| Weight | 1.5Kg | |
* The whole machine is designed with high-strength all-aluminum alloy, matte process, beautiful appearance, IP65 high protection rating, with explosion-proof capacity.
* The high-reliability circuit design, with power supply and network dual lightning surge protection, up to GB/T 17626.5 highest class 4 standards
* Two red LED ring metal keys for one-click alarm and one-click help intercom;
* Built-in 5W horn and high sensitivity microphone for two-way intercom with other network devices;
* With a 30W amplifier output port, it can be connected to 8 Euro 30W speakers for broadcast amplification.
* With two-way linkage input, two-way linkage output interface, convenient to extend with other systems;
* With a 24V active picker interface, you can do listening input extension;
* A broadcast source output with a mix all the way, a broadcast amplifier for an external amplifier;
