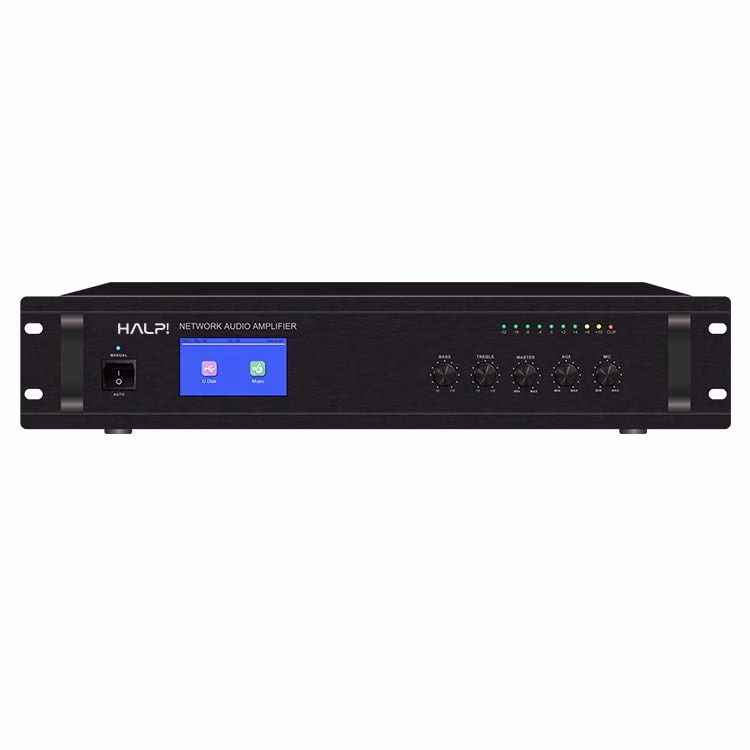

IP-8660P Digital IP Touch Screen Network Amplifier

IP-8660P Digital IP Touch Screen Network Amplifier

The Arvox IP‑8660P is a versatile digital network amplifier featuring touchscreen control, USB playback, multi-channel outputs, and robust network streaming—perfect for professional IP PA installations. It excels in scenarios requiring consistent audio management, multi-zone flexibility, and emergency authority.

Category:

Main Features

  • 2U rack-mount aluminum chassis with sleek black front panel—designed for elegant cabinet-style setup

  • Embedded industrial CPU & DSP, delivering lightning-fast startup (<1 s) and reliable audio processing

  • 3.2″ color capacitive touch screen allows easy control of playback (play/pause/next/prev), volume, and progress via built-in USB source

Audio I/O & Control

  • Dual fixed‑voltage speaker outputs: 100 V & 70 V, plus low‑impedance (4–16 Ω) line output

  • Inputs: 1 mic, 1 line, plus 1 EMC (emergency) input that preempts all audio

  • Auxiliary line-out to expand to external amplifiers.

  • Independent volume, bass, and treble control per audio channel

Advanced Features

  • Three-wire sound-activated mute output and built-in 24 V DC trigger for auto audio control

  • 10-segment LED level meter for real-time signal monitoring .

  • Network audio decoding via hardware module, compatible with TCP/IP, UDP, IGMP multicast, streaming CD-quality audio (16-bit stereo)

  • Audio priority system supports up to 1,000 levels, plus PSTN phone and SMS voice broadcast override

  • Remote control via Wi‑Fi or server/APP, with user authorization and flexible IP configuration .

  • Protection features include 15 kV ESD, network surge, short-circuit, overload, and intelligent cooling fan

Item NO. IP-8660P IP-8612P IP-8624P IP-8636P IP-8650P IP-8665P
Rated power 60W 120W 240W 360W 500W 650W
Network interface Rj45
Transmission rate 100Mbps
Support agreements TCP/IP, UDP, IGMP (broadcast)
Audio format MP3/MP2
Audio mode 16-bit stereo CD sound quality
Sample rate 8K to 48K
Bit rate 8K to 512Kbps
LINE OUT output level 775mV, 2 lotus seats
LINE OUT output impedance 470 Ω
AUX input sensitivity 470mV (non-balanced)
MIC input sensitivity 5 to 10mV (non-balanced)
Treble lift, attenuation ±12dB
Bass lift, attenuation ±12dB
Standby power consumption <3W
Frequency response 60Hz to 18KHz
Harmonic distortion THD ≤0.5%
Signal-to-noise ratio ≥75dB
The output mode 4 to 16 o fixed resistance output, 70V/100V fixed pressure output
Protection circuit DC output, overload, over temperature, short circuit protection circuit
The ambient temperature 5°C to 40°C
Ambient humidity 20% to 80% relative humidity
Input power supply – 220V/50Hz
Power consumption 95W 175W 350W 486W 675W 870W
Size 485x365x89mm
Weight 10.04kg 11.36kg 13.68kg 14.08kg 15.58W 17.58kg

* High-grade aluminum 2U black pull panel, cabinet-style installation, beautiful and generous;
* The equipment is designed with embedded computer technology and DSP audio processing technology.
* 3.2-inch color touch screen display, industrial touch operation to achieve human-machine interaction, touch sensitive;
* With the local USB stick playback function, sequential playback mode, automatically stop after playback;
* Supports a variety of modes of operation (play, pause, select songs, previous, next, progress, volume adjustment);
* The use of high-speed industrial-grade chips, start-up time is less than 1s;
* It is provided with a 100V, 70V fixed-pressure output and a 4-16-degree fixed-stop output;
* 2 signal inputs (1 microphone, 1 route);
* 1 EMC input interface with the highest input priority when entering emergency alarm voice signal;
* 1 audio signal auxiliary output interface, expandable external power amplifier;
* Each channel volume is independently adjustable, with treble and bass adjustment;
* Three-wire sound-controlled strong-cut output interface, no DC24V strong-cut power supply, and unlimited number of audio control;
* It has a 10-unit LED level indication to observe the amplifier output status;
* Built-in 1 network hardware audio decoding module, support TCP/IP, UDP, IGMP (multicast) protocol;
* To realize the network transmission of 16-bit stereo CD sound quality audio signal;
* Support for 1000 levels of custom audio priority silent sound control;
* Support for PSTN telephone broadcasting, support for SMS voice broadcasting;
* Support mobile WIFI on demand, support wireless remote control on demand;
* Support the server unified authorization operation management function, unified configuration management users and passwords;
* Support DHCP, compatible with routers, switches, bridge gateways, Modem, Internet, 2G, 3G, 4G, multicast, unicast and other arbitrary network structures;
* Supports the smart voice prompt function when the terminal is newly configured for registration (e.g. the device is connected);
* Support for 15KVESD protection, built-in network isolation lightning treatment circuit;
* 1 PC to download IP address serial port, used to modify the network decoding module IP address;
* Digital networked products, easy to expand, not limited by geographical location, no need to increase room management equipment;
* The design concept of the network-free line construction is adopted, and the installation is simple;
* The cooling fan is activated with intelligent temperature control;
* Standby power is less than 3W, to meet the national environmental protection and energy conservation certification standards;
* With a perfect output short-circuit protection and over-temperature protection function;
