IP-8560P Digital IP Network Amplifier

IP-8560P Digital IP Network Amplifier

The Arvox IP‑8560P line is a powerful, network-enabled amplifier suite offering modular power options, extensive priority controls, and robust IP audio streaming—ideal for professional public address setups. It’s great if you need versatile speaker outputs, priority routing, and centralized audio control.

Category:

Main Features

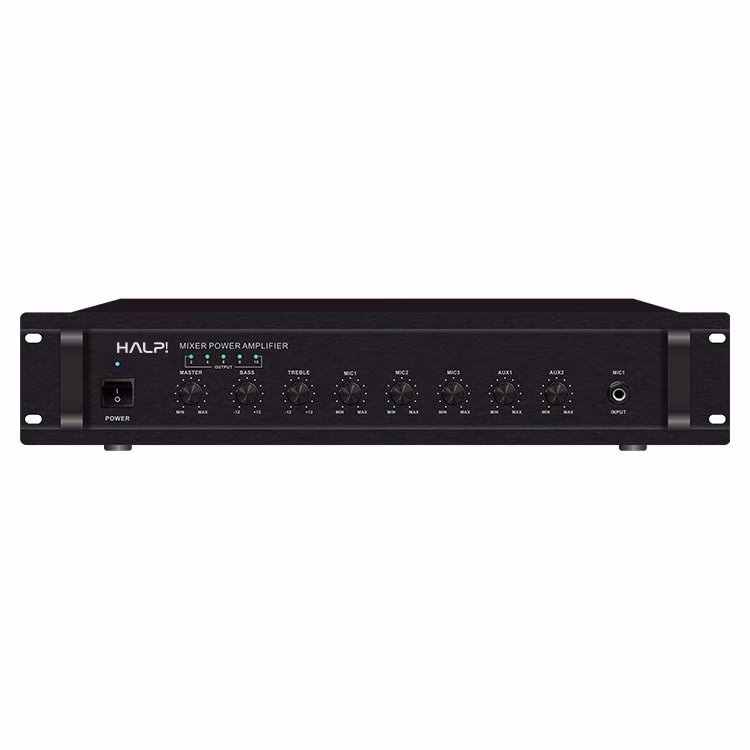

  • 2U rack-mount aluminum panel, sleek cabinet-style design

  • Embedded industrial CPU + DSP, enabling fast startup (<1 s) and reliable audio processing

  • Multiple fixed-voltage outputs:

    • 100 V & 70 V constant-voltage lines,

    • 4–16 Ω low-impedance output

  • Five inputs (three mic + two line), plus auxiliary line-out for system expansion

  • Independent volume + treble/bass control per channel, with LED level indicators (5-segment LED)

  • Priority and control interfaces:

    • MIC1 auto-mute adjustable (0 to –30 dB),

    • Short-circuit audio control input/output,

    • Built-in 24 V DC trigger output

  • Network audio decoding module supports TCP/IP, UDP, IGMP multicast streaming of CD-quality 16-bit stereo audio

  • Audio priority system: up to 1,000 custom priority levels, including PSTN & SMS voice broadcast

  • Remote management via Wi‑Fi, mobile, and server-based control; supports DHCP/static IP configurations

  • Robust protections: 15 kV ESD, network lightning protection, short-circuit, overload, and thermal safeguards

  • Dual-mode cooling fan, intelligent temperature-based activation

  • Low power draw: <3 W standby; meets environmental energy conservation standards

Item NO. IP-8560P IP-8512P IP-8524P IP-8536P IP-8550P IP-8565P
Rated power 60W 120W 240W 360W 500W 650W
Network interface Rj45
Transmission rate 100Mbps
Support agreements TCP/IP, UDP, IGMP (broadcast)
Audio format MP3/MP2
Audio mode 16-bit stereo CD sound quality
Sample rate 8K to 48K
Bit rate 8K to 512Kbps
LINE OUT output level 775mV, 2 lotus seats
LINE OUT output impedance 470 Ω
AUX input sensitivity 470mV (non-balanced)
MIC input sensitivity 5 to 10mV (non-balanced)
Treble lift, attenuation ±12dB
Bass lift, attenuation ±12dB
Standby power consumption <3W
Frequency response 60Hz to 18KHz
Harmonic distortion THD ≤0.5%
Signal-to-noise ratio ≥75dB
The output mode 4 to 16 o fixed resistance output, 70V/100V fixed pressure output
Protection circuit DC output, overload, over temperature, short circuit protection circuit
The ambient temperature 5°C to 40°C
Ambient humidity 20% to 80% relative humidity
Input power supply – 220V/50Hz
Power consumption 95W 175W 350W 486W 675W 870W
Size 485x365x89mm
Weight 10.04kg 11.36kg 13.68kg 14.08kg 15.58W 17.58kg

* High-grade aluminum 2U black pull panel, cabinet-style installation, beautiful and generous;
* The equipment is designed with embedded computer technology and DSP audio processing technology;
* The use of high-speed industrial-grade chips, start-up time is less than 1s;
* It is provided with a 100V, 70V fixed-pressure output and a 4-16-degree fixed-stop output;
* Five signal inputs (three microphones, two routes);
* 1 audio signal auxiliary output interface, expandable external power amplifier;
* Each channel volume is independently adjustable, with treble and bass adjustment;
* MIC1 automatic silent sound with adjustment switch, adjustable range: 0 to -30dB;
* With 5-unit LED level indication, easy to observe the signal output status;
* MIC1 automatic silent sound with adjustment switch, adjustable range: 0 to -30dB;
* Three-wire sound control strong cut output interface, unlimited number of audio control;
* Built-in DC24V power output for strong cutting 4-wire sound control;
* 1 set of short-circuit signal input, through the software settings can trigger the native alarm;
* 1 set of short-circuit signal trigger outputs to drive other linkage devices;
* Built-in 1 network hardware audio decoding module, support TCP/IP, UDP, IGMP (multicast) protocol;
* To realize the network transmission of 16-bit stereo CD sound quality audio signal;
* Support for 1000 levels of custom audio priority silent sound control;
* Support for PSTN telephone broadcasting, support for SMS voice broadcasting;
* Support mobile WIFI on demand, support wireless remote control on demand;
* Support the server unified authorization operation management function, unified configuration management users and passwords;
* Support DHCP, compatible with routers, switches, bridge gateways, Modem, Internet, 2G, 3G, 4G, multicast, unicast and other arbitrary network structures;
* Supports the smart voice prompt function when the terminal is newly configured for registration (e.g. the device is connected);
* Support for 15KVESD protection, built-in network isolation lightning treatment circuit;
* 1 PC to download IP address serial port, used to modify the network decoding module IP address;
* Digital networked products, easy to expand, not limited by geographical location, no need to increase room management equipment;
* The design concept of the network-free line construction is adopted, and the installation is simple;
* The cooling fan is activated with intelligent temperature control;
* Standby power is less than 3W, to meet the national environmental protection and energy conservation certification standards;
* With a perfect output short-circuit protection and over-temperature protection function
