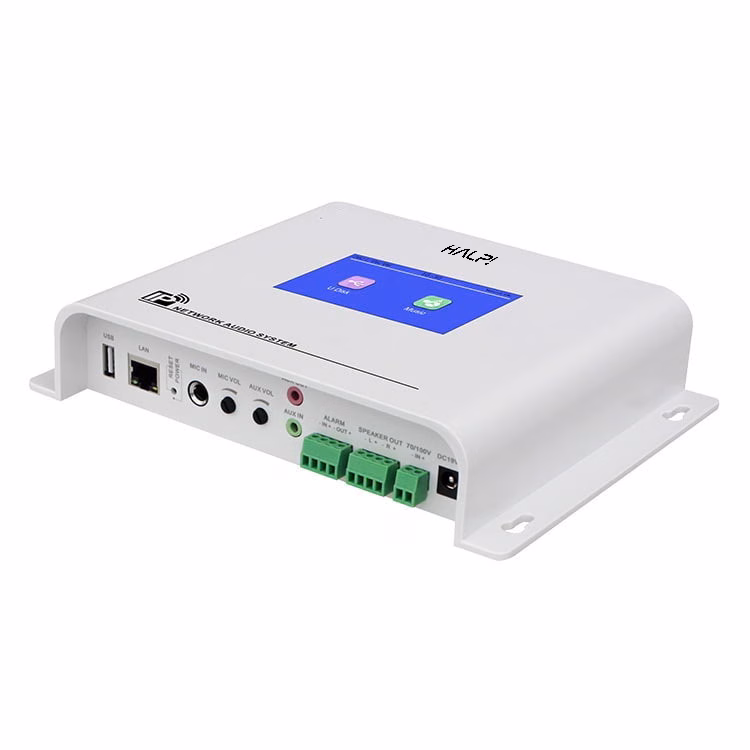

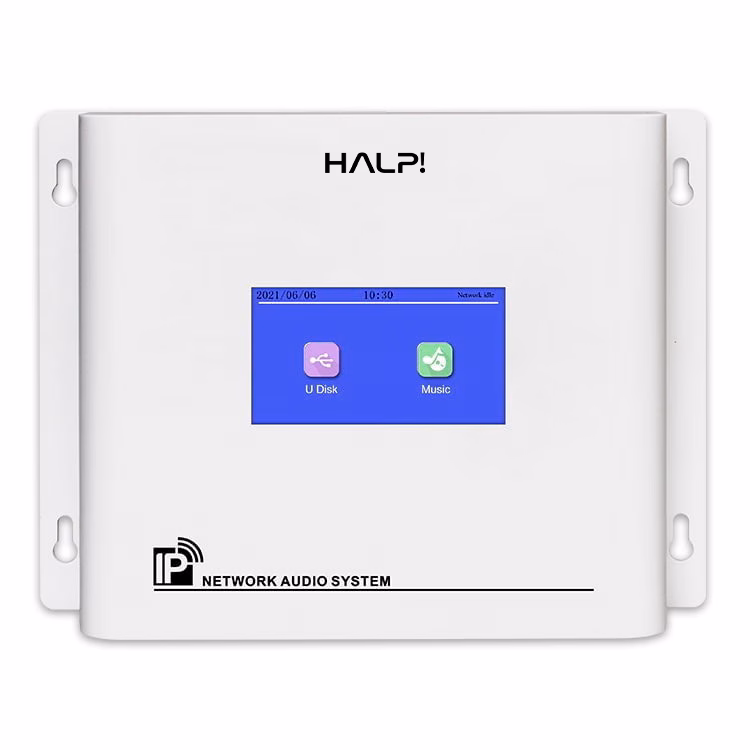

IP-8400WT/IP-8410WT Wall Mounted Network Terminal
The IP‑8400WT/IP‑8410WT Wall-Mounted Terminal is a sturdy, IP-grade intercom solution, designed for use in demanding environments needing voice communication, alert functions, and seamless IP integration. It’s a solid choice for emergency help-points and industrial PA intercom systems.
Build & Protection
-
Crafted with all-aluminum alloy, offering a sleek and durable finish.
-
IP65 rated for dust and water resistance—ideal for outdoor or industrial wall mounting
-
Designed with dual surge and lightning protection on both power and network interfaces, meeting PLC4 standards .
Audio & Intercom Features
-
Integrated speaker and microphone for full-duplex two-way communication.
-
Typically equipped with two one-touch buttons (e.g., call and help) featuring LED indicators (exact configuration may vary).
-
24V power supply input on most models—external PSU required (no PoE).
-
Includes I/O linkage ports for connecting external devices like alarms, sensors, or access control.
| Item NO. | IP-8400WT | IP-8400WTL | IP-8410WT | IP-8410WTL |
| Display screen | / | 3.5-inch true color touch display | ||
| Network interface | Standard RJ45 input | |||
| Support agreements | TCP/IP, UDP, IGMP (broadcast) | |||
| Audio format | MP3/MP2 | |||
| Output power | 2×25W fixed resistance | |||
| Frequency response | 50Hz to 18KHz | |||
| Sample rate | 8K to 48KHz | |||
| Transmission rate | 100Mbps | |||
| Audio mode | 16-bit stereo CD sound quality | |||
| Harmonic distortion | ≤0.3% | |||
| Signal-to-noise ratio | >70dB | |||
| The source output level | 1000mV industrial standard voltage terminals | |||
| The source output impedance | 470 Ω | |||
| The ambient temperature | 5°C to 40°C | |||
| Ambient humidity | 20% to 80% relative humidity | |||
| Power consumption | ≤36W | |||
| Input power supply | – 220V 50Hz | |||
| Size | 220×160×43mm | |||
| Weight | 1.28Kg | |||
* Wall-mounted design, private white alloy plastic injection molding, beautiful and generous technology;
* The terminal uses embedded technology and DSP audio processing technology;
* The use of high-speed industrial-grade chips, start-up time is less than 1s;
* Built-in 2×25W fixed resistance output Class D amplifier module, beautiful sound, strong power;
* Built-in network hardware audio decoding module, support TCP/IP, UDP, IGMP (multicast) protocol;
* To realize the network transmission of 16-bit stereo CD sound quality audio signal;
* Stereo audio road output, can be external power amplifier or active speaker;
* 1 stereo line input, 1 microphone input, with independent volume adjustment switch;
* 1 USB stick input interface, can realize the local USB stick playback function;
* Built-in analog audio signal backup module to support fixed voltage 70V/100V signal input;(Only IP-8400WTL/IP-8410WTL has this function)
* When the device detects no network signal input or power loss, automatically switch input fixed voltage signal amplification,to achieve dual-line redundancy;(Only IP-8400WTL/IP-8410WTL has this function)
* 1 short-circuit signal input, can be connected to the linkage trigger signal, in case of emergency can trigger the terminal alarm;
* 1 short-distance signal output, in case of emergency can be linked to trigger other equipment;
* Supports the smart voice prompt function when the terminal is newly configured for registration (e.g. the device is connected);
* With 1000 levels of custom audio priority silent sound control function;
* With the server unified authorization operation management function, unified configuration management users and passwords;
* With digital audio time passing break point playback function, to ensure the synchronization of broadcast effects;
* With PSTN telephone broadcasting, support sms voice broadcasting function;
* With mobile WIFI on demand, support wireless remote control on demand function;
* Support DHCP, compatible with routers, switches, bridge gateways, Modem, Internet, 2G, 3G, 4G, multicast, unicast and other arbitrary network structures;
