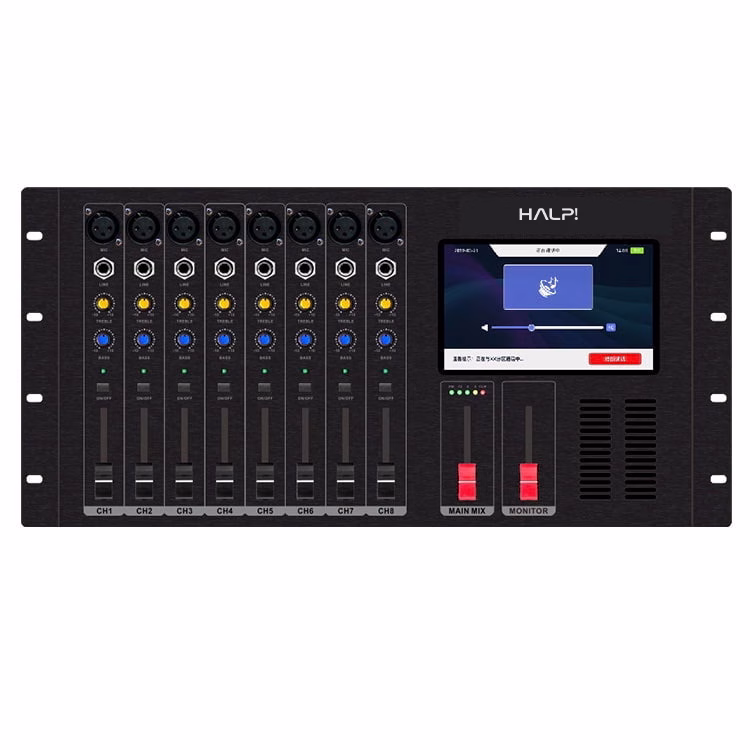

IP-8320MX 7 Inch Touch Screen Network Audio Mixer
The Arvox IP‑8320MX is a compact and smart network audio mixer with touchscreen operation, zone control, and USB playback, making it perfect for IP-based public address (PA) systems. It’s a great solution for buildings needing flexible audio management without heavy infrastructure.
Key Features
-
7-inch full-color capacitive touchscreen: Provides an intuitive interface for real-time mixer control.
-
8 balanced mic inputs + 8 stereo line inputs: Each with adjustable level, bass, treble, and mute functions.
-
Built-in DSP with embedded processing engine: Ensures fast, low-latency audio processing (delay < 200 ms).
-
1 stereo line output and 3W built-in monitor speaker for local audio preview.
-
Supports up to 10 broadcast zones: Enables one-touch area broadcasting, ideal for paging and announcements.
-
USB MP3 playback: Plays background music or announcements directly from USB flash drive.
-
IP network control via RJ45 (100 Mbps): Compatible with TCP/IP, UDP, IGMP protocols.
-
Upgradeable firmware: Supports updates via LAN or RS232. Low standby power (<3 W); full operation at ~95 W.
| Item NO. | IP-8320MX |
| Network interface | Standard RJ45 |
| Transmission rate | 100Mbps |
| Support agreements | TCP/IP, UDP, IGMP (broadcast) |
| Audio format | MP3/MP2 |
| Audio mode | 16-bit stereo CD sound quality |
| Sample rate | 8K to 48K |
| Bit rate | 8K to 512Kbps |
| LINE OUT output level | 775mV, 1 6.35 caron, 1 2-bit lotus seat |
| LINE OUT output impedance | 470 s |
| LINE input sensitivity | 470mV (non-balanced) |
| MIC input sensitivity | 5 to 10mV (balance) |
| Treble up and down | ±10dB |
| Bass lift, attenuation | ±10dB |
| Power consumption | 95W |
| Standby power consumption | <3W |
| Frequency response | 20Hz to 20KHz |
| Signal-to-noise ratio | ≥75dB |
| The ambient temperature | 5°C to 40°C |
| Ambient humidity | 20% to 80% relative humidity |
| Input power supply | AC100-240V, 50Hz/60Hz |
| Size | 483x230x60mm |
| Weight | 6.3kg |
* The built-in audio acquisition coding module can collect analog audio to any terminal of the IP network broadcasting system, and the audio acquisition delay is less than 200ms;
* The equipment is designed with embedded computertechnology and DSP audio processing technology.
* 7 inch full color capacitor touch screen display and control, touch sensitive;
* 8 balanced microphone inputs, 8 stereo line inputs, 1 audio output;
* Built-in 3W listening horn, listening volume 60MM putter adjustable;
* 7 LED indicators show the acquisition volume level and output level;
* Each of the 8 input channels has a separate self-lock switch that can quickly turn the channel input signal on and off;
* The input has a separate high bass potential adjustment, 60MM pushrod adjusts the size of each level;
* The microphone input is balanced, powered by a microphone light ring, and can be inserted directly into the wheat bar to collect speech without the need for an external goose-neck microphone;
* Professional structure design, as far as the desktop, can also be installed on the 19-inch standard cabinet,
* With the local USB stick acquisition to the designated terminal playback function, can realize playback, pause, stop, the previous song, the next song and other playback control functions;
* The display can set 10 custom broadcast areas, one-click start-up acquisition function, can also be one-click region-wide collection;
* 1 reserved PC download address serial terminal, can adapt to different places of network address modification;
* Firmware support network upgrades, serial upgrades and other upgrade programs, built-in high-speed industrial-grade processor, start-up time of less than 1 second;
* Digital networked products, easy to expand, not limited by geographical location, no need to increase room management equipment;
* The design concept of the network-free line construction is adopted, and the installation is simple;
* Standby power is less than 3W, to meet the national environmental protection and energy conservation certification standards;
