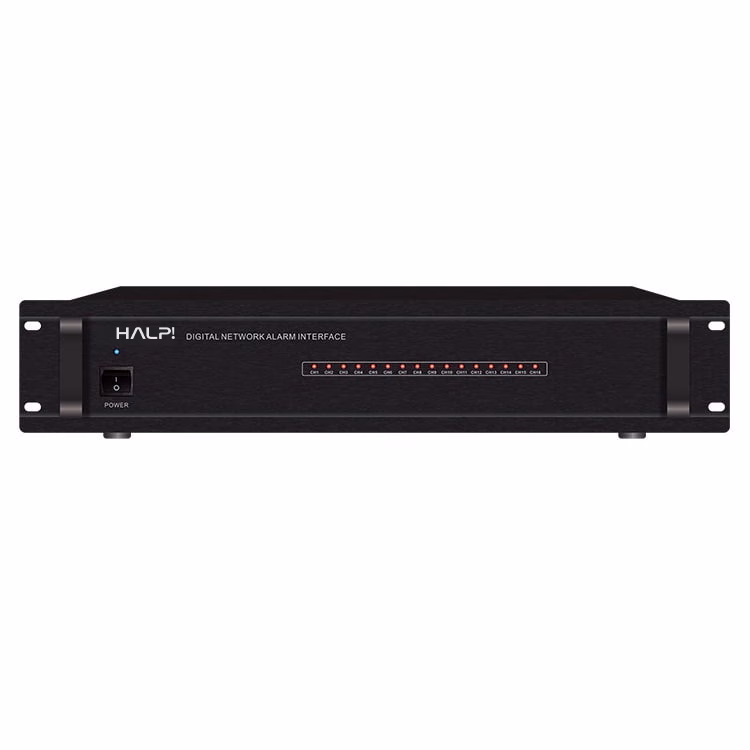

IP-8016AL 16-CH Network Alarm Panel
The Arvox IP‑8016AL is a rugged, industrial-level alarm panel designed for networked PA systems. It enables prioritized emergency alerts, extensive alarm I/O, and reliable operation via static IP and surge protection. It’s best paired with IP audio endpoints
Core Features
-
Rack-mountable 2U aluminum chassis (black), robust and professional-looking
-
16 network alarm inputs—each channel features an LED indicator to signal triggered alarms
-
4 network alarm outputs (low-level closing), allowing connection to external equipment or systems
-
Static IP configuration: retains IP settings even after network changes for reliable operation
-
Alarm priority system: highest-priority alarms automatically interrupt ongoing audio broadcasts .
-
Expandable emergency lines: integrates seamlessly with IP-based audio and paging systems .
-
Customizable alarm tones: assign different ringtones per input or location for clearer identification
-
Surge protection: includes 15 kV ESD protection and network isolation to safeguard against electrical spikes
-
Serial PC port: for easy IP configuration and system setup
-
Embedded computing + DSP: industrial-grade chip with <1 second startup
-
Wide AC power range: operates on AC100–240 V via internal switching power supply
| Item NO. | IP-8016AL |
| Input power supply | AC100 to 240V/50Hz |
| Standby power consumption | ≤ 1W |
| Alarm input | 16(short signal input) |
| Alarm output | 4-way (short signal input) |
| Network communication protocols | ARP, UDP, TCP/IP, ICMP, IGMP |
| Audio bit rate | 8Kbps to 320Kbps |
| Sample rate | 8K to 48KHz |
| Audio format | MP3 |
| Transmission rate | 10/100Mbps |
| Network delay | ≤ 50ms |
| The operating environment temperature | -20°C to 85°C |
| Humidity in working environment | 20% to 80% |
| Size | 485×365×89mm |
| Weight | 6.8Kg |
* High-grade aluminum 2U black pull panel, beautiful and generous;
* 16 network alarm input, when there is a signal input, the corresponding channel light is on;
* 4 network alarm output, low level closed signal, easy to control other equipment;
* The use of fixed static IP address, when the network changes the address will not be lost, stable work;
* The alarm signal is preferred and automatically plugged in;
* With digital network audio system, the number of fire lines is expanded at will;
* According to different locations and different sources of alarm ringtones can be set to make the disaster clear and clear;
* Support for 15KVESD protection, built-in network isolation lightning treatment circuit;
* 1 PC to download IP address serial port, used to modify the network decoding module IP address;
* The design is based on embedded computer technology and DSP audio processing technology;
* The use of high-speed industrial-grade chip, start-up time is less than 1 second;
* The device power supply is designed with a switching power supply, and the AC100 to 240V voltage can work properly;
